Famed for their role in fluid control, gate valves act as fundamental tools for either thorough cessation or unrestrained flow of liquids. Shengao's gate valves are notable for their exceptional sealing mechanisms and steadfast functionality. Their adaptable nature positions them as perfect fits for industrial environments as well as urban water networks, especially during crucial fluid management situations.
Pivotal in ensuring leak-proof isolation and facilitating maintenance without disrupting pipeline operations.
Central to controlling large-scale water flow and providing robust shutoff in water treatment facilities and mains.
Critical for containment and isolation of chemicals, providing safe operation in systems transferring aggressive substances.
Integral for controlling water flow in hydroelectric stations and managing steam in thermal power plants.
Essential in shipbuilding for regulating water ingress and egress, and managing fuel and ballast systems with assured dependability.

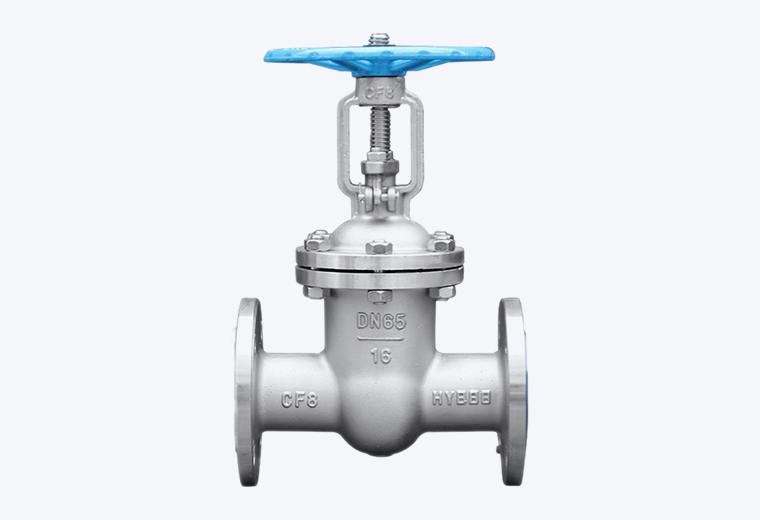

In the intricate arena of industrial flow management, the gate valve establishes a robust presence. A gate valve, in essence, facilitates the initiation or cessation of fluid flow. Its operation is characterized by the vertical movement of a flat gate, which descends or ascends in a linear motion, akin to a barrier, to open or seal the flow path entirely.
The valve stem drives the valve disc to move up and down to open and close.
Use fluid movement to drive the opening, with small flow resistance (a few special stop valves are high in and low out)
The gate valve body forms the main structure, housing the internal components and providing the flow path for the medium it controls. Gate valves are typically fashioned in three configurations: solid wedge, flexible wedge, and split wedge or parallel disks, catering to various pressure and temperature conditions, which make them suitable for a broad array of industrial applications.
The gate in a gate valve serves as the barrier that restricts or allows flow. Moving perpendicularly to the direction of flow, the gate's movement is controlled by the valve stem. The precision with which the gate fits into the valve seat directly impacts the seal quality and flow control, making the material and design of the gate critical to the valve’s overall performance.
The stem provides the necessary movement to the gate, enabling it to ascend or descend during operation. It can be designed as rising or non-rising, where a rising stem provides a visual indication of the valve's status and a non-rising stem is used in limited vertical space applications. The stem must be robust to transmit the actuator force without bending or breaking.
Seals in a gate valve are fundamental in preventing leaks and ensuring a tight closure. Positioned around the gate and at the point where the stem penetrates the valve body, these seals must be resistant to the medium's pressure and temperature and compatible with its chemical nature to ensure longevity and reliability. The seal design is crucial for maintaining the efficiency of the valve throughout its service life.
1.Provides a straight-line flow with minimal restriction, reducing pressure drop.
2.Can be used in two flow directions, offering greater flexibility in piping.
3.When closed, it offers a tight seal due to the mating of the gate and the seats.
4.Typically has a longer life span due to less turbulence and erosion inside the valve.
5.The gate fully retracts into the bonnet, allowing for full flow.
6.Straight path when open results in very low fluid resistance.
7.Suitable for both above-ground and underground installations.
8.Effective in high pressure and temperature applications.
1.Takes time to open and close compared to other valve types.
2.Not designed for flow regulation; can cause seat or gate damage if used for throttling.
3.The gate can trap fluids when closed, potentially leading to pressure differentials.
4.Generally larger and heavier, requiring more space and support.
5.More prone to wear and corrosion, which may complicate maintenance.
6.Can be prone to jamming if solids are present in the fluid.
7.Can require significant torque to operate, especially in high-pressure systems.
8.Susceptible to cavitation when used in throttling applications.

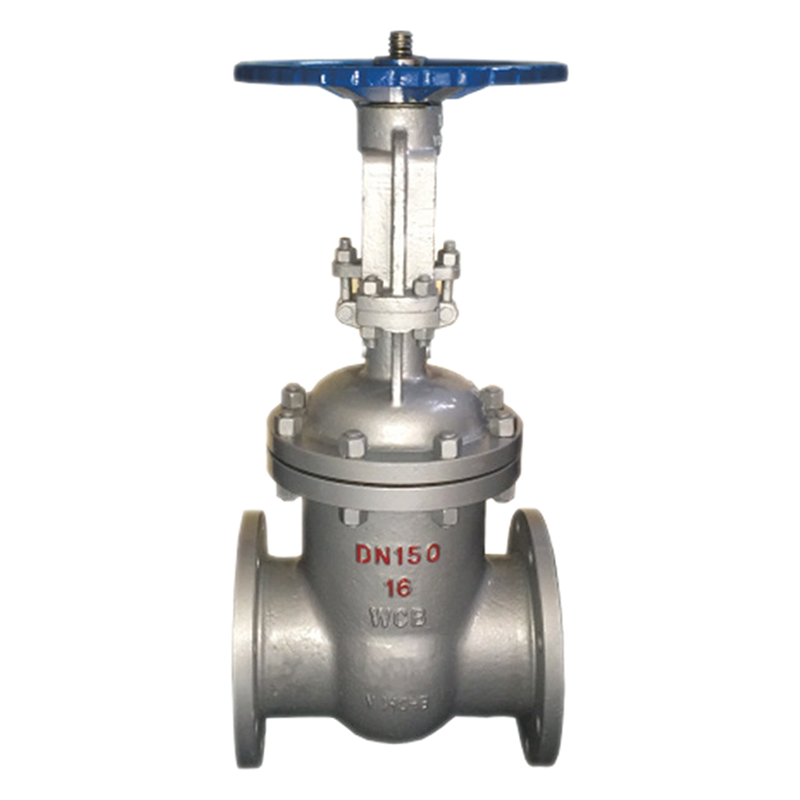

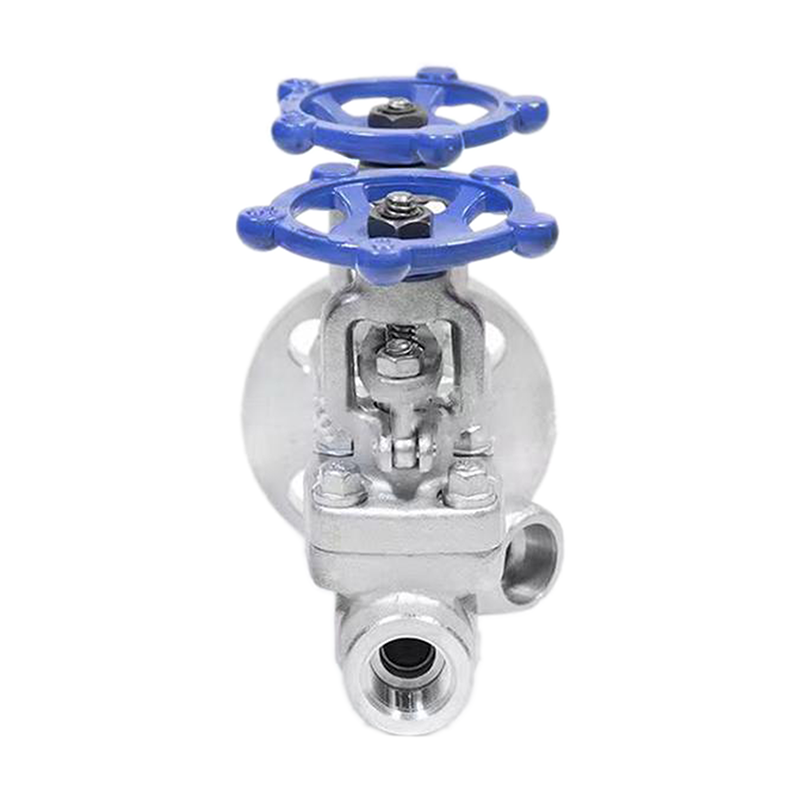

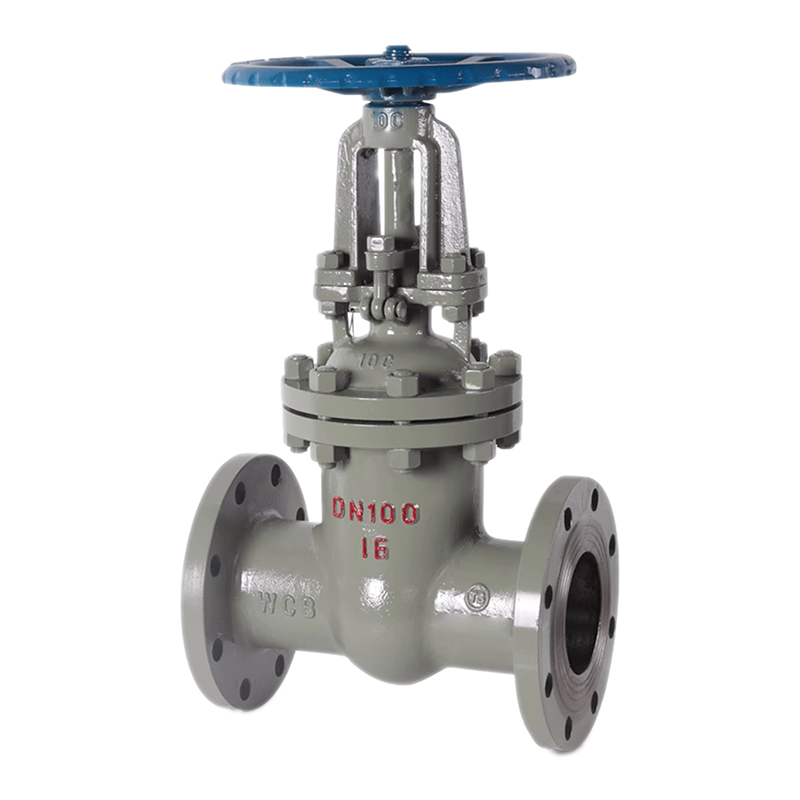

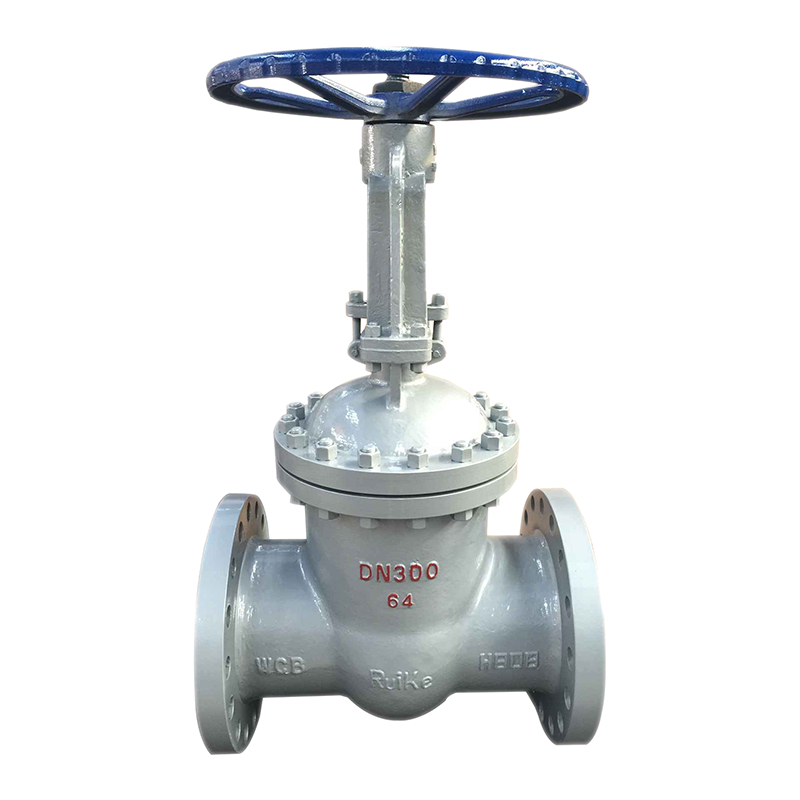

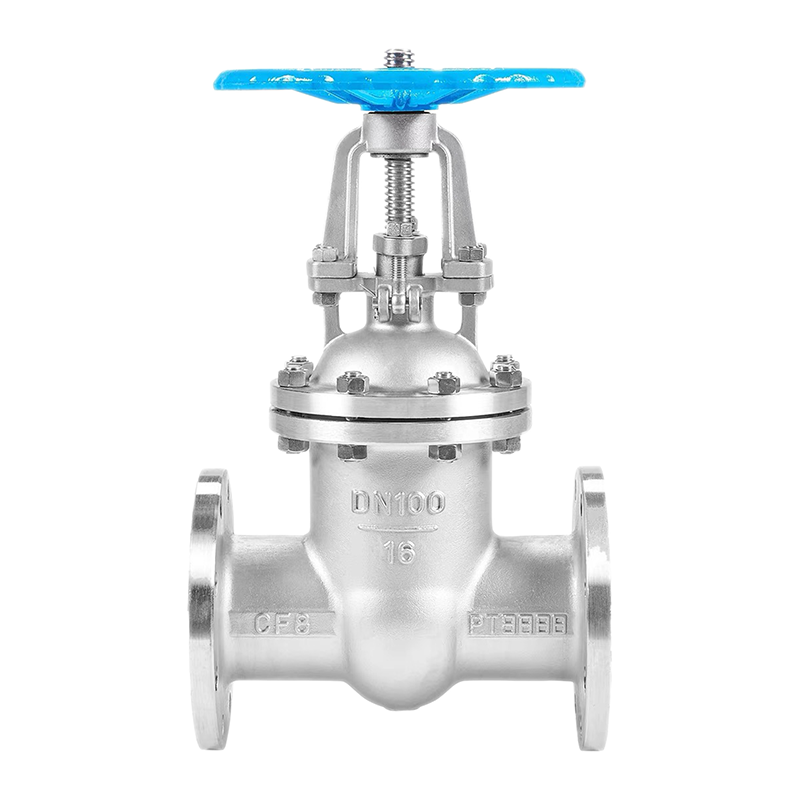

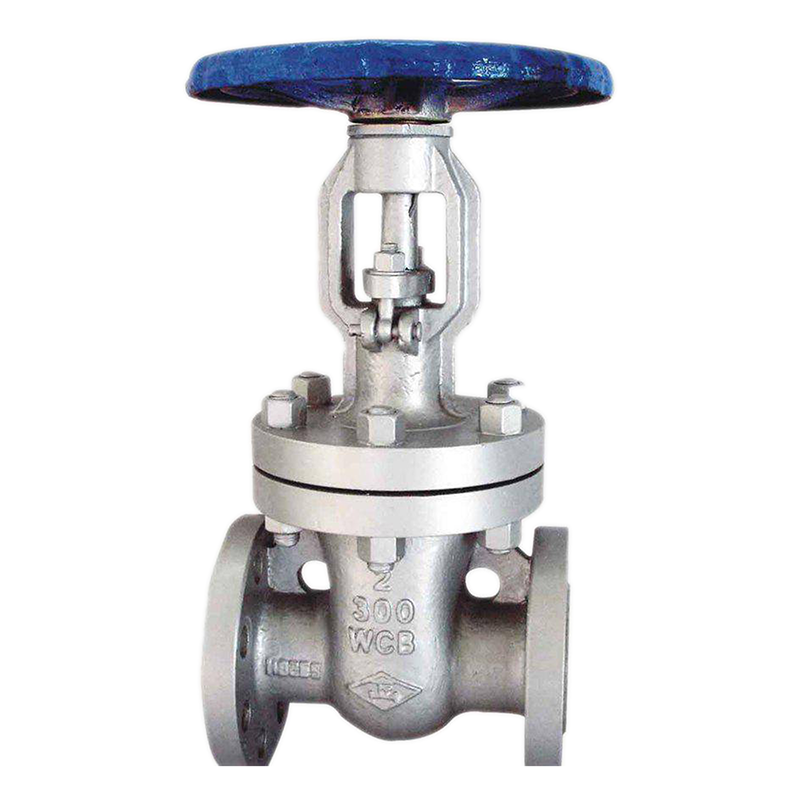

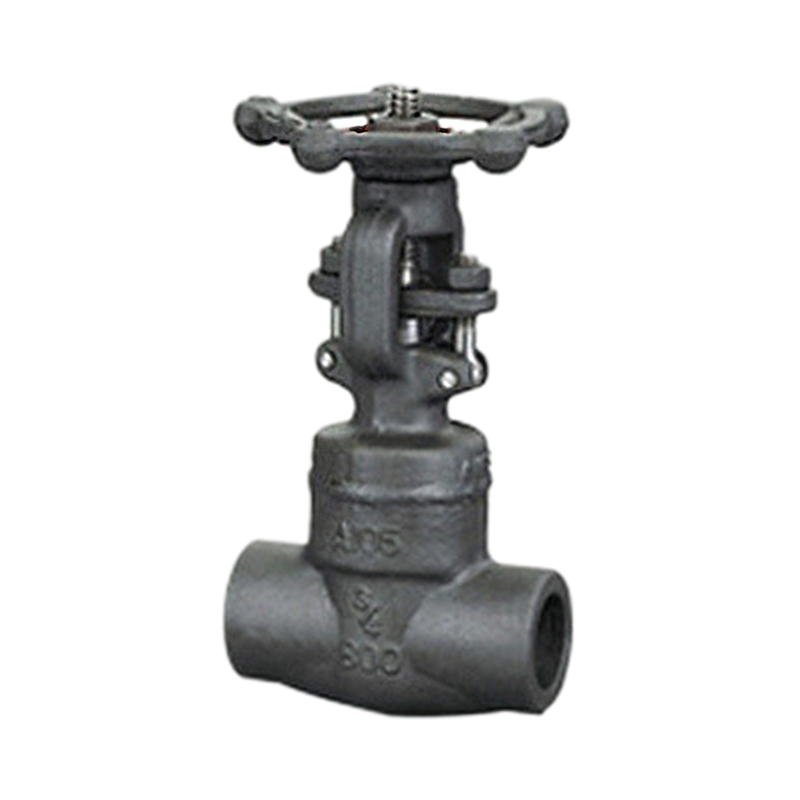

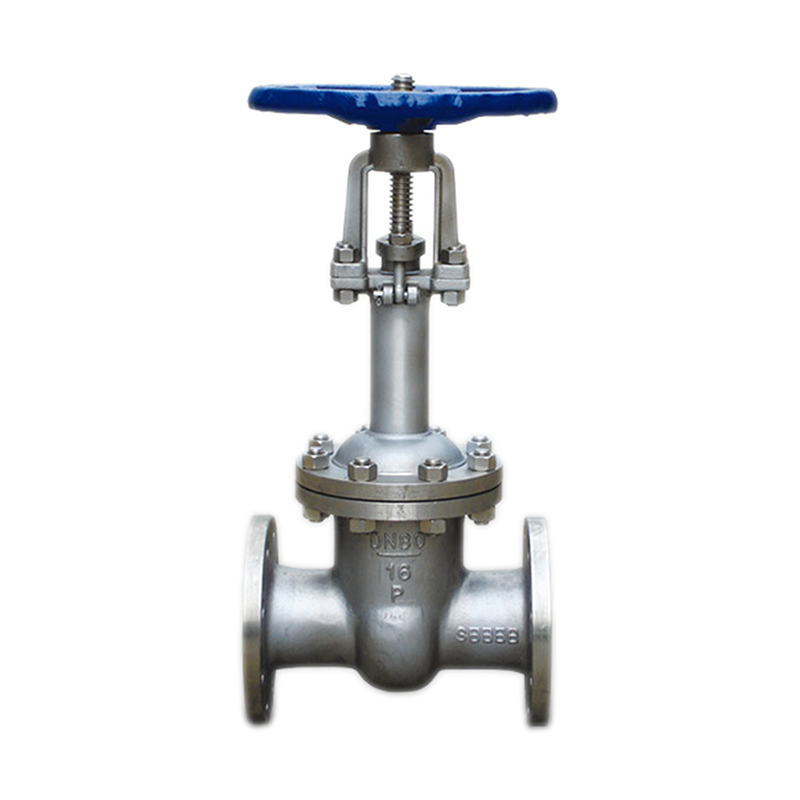

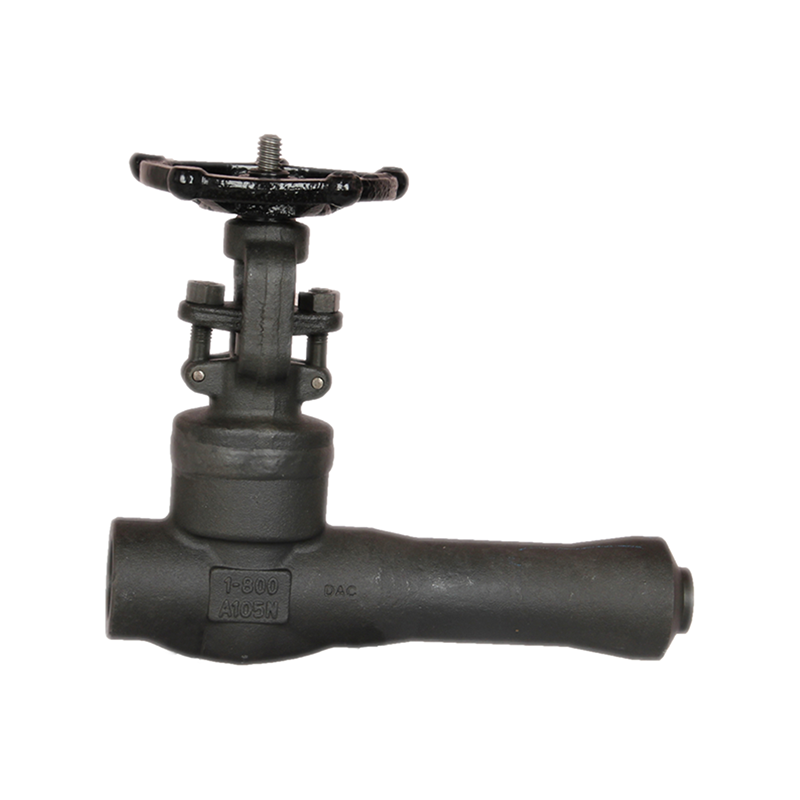

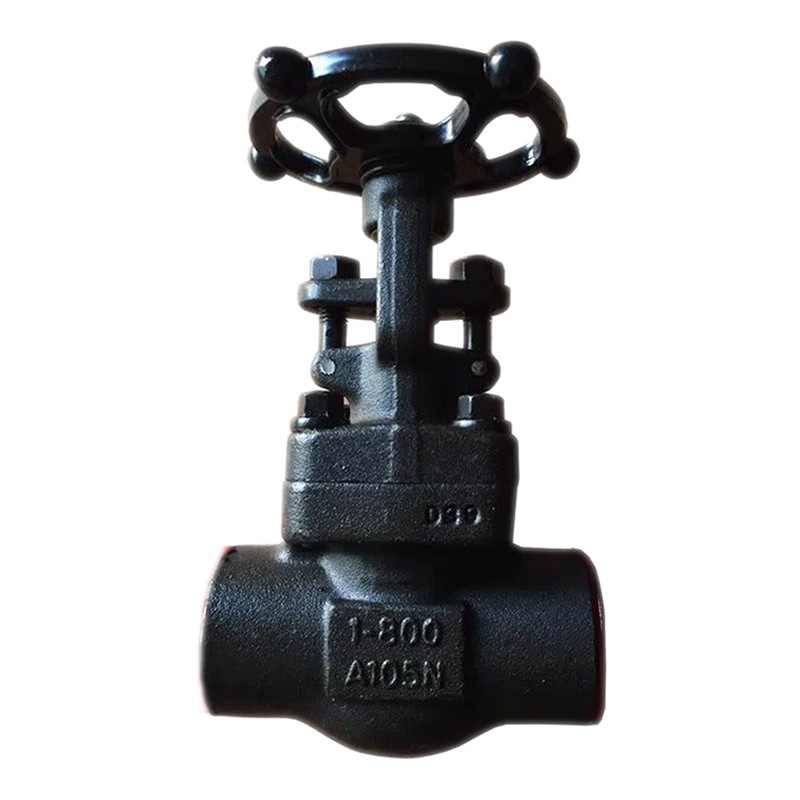

Shengao, a venerated fabricator of gate valves, designs customized valves that align with specific industrial demands. We introduce the robust cast-steel gate valve, a staple in durability and performance for diverse applications. For environments that wrestle with aggressive chemicals, our corrosion-resistant, polymer-coated gate valves provide an enduring solution. And for high-stakes scenarios involving substantial pressures and temperatures, our forged alloy gate valves are the paragons of resilience, ensuring unwavering service in the most demanding of situations.
